When selecting a backup battery for solar system applications, the battery’s temperature rating is often the most overlooked yet critical specification. Standard lithium-ion and lead-acid batteries typically operate efficiently only within a narrow temperature range—usually between 50°F and 80°F. Outside this range, especially in extreme cold or heat, these batteries can suffer substantial capacity loss, reduced cycle life, and even permanent damage. For solar installations exposed to harsh environments or wide temperature fluctuations, choosing a Wide Temperature (Wide Temp) battery becomes essential to ensure reliable energy storage and consistent performance year-round.
Why Temperature Rating Matters More Than You Think
Most backup battery buyers focus primarily on capacity, cycle life, and cost. However, battery performance is highly sensitive to ambient temperature, with cold temperatures causing capacity derating and heat accelerating battery degradation. For example, standard Li-ion batteries can lose up to 50% of their usable capacity at 32°F and may shut down completely below freezing. Similarly, temperatures above 104°F (>40°C) can severely shorten the battery’s lifespan.
In solar power systems, where batteries are often installed outdoors or in unheated spaces like garages, attics, or remote off-grid sites, temperature extremes are common. Without accounting for this, a backup battery might underperform or fail precisely when you need it most—during a winter storm or a summer heatwave. This is why Wide Temp rated batteries, with validated operation from as low as -40°F to as high as 140°F, are a game-changer for solar energy storage.
Understanding Wide Temperature LiFePO4 Batteries
Wide Temp batteries, such as those manufactured by Intelligent Power, utilize lithium iron phosphate (LiFePO4) chemistry optimized for extreme temperature resilience. The key benefits of these batteries in solar backup applications include:
- Extended Operating Range: Reliable operation from -40°F (-40°C) up to 140°F (60°C), eliminating the need for costly climate-controlled enclosures.
- Long Cycle Life: Over 4,000 deep discharge cycles at standard conditions, translating to a decade or more of service in typical residential or commercial solar setups.
- Improved Safety: LiFePO4 chemistry is inherently more stable and less prone to thermal runaway compared to other lithium-ion types.
- Consistent Capacity Delivery: Minimal capacity loss at low temperatures compared to standard lithium or lead-acid batteries.
Sizing Your Backup Battery for Temperature Derating
Accurately sizing your battery system involves more than just calculating daily energy usage and solar production. Temperature derating must be incorporated to ensure sufficient usable capacity during extreme conditions.
Step 1: Determine Energy Needs
Calculate your daily energy consumption in kilowatt-hours (kWh) that you want to back up. For example, a typical whole-home load might be 10 kWh per day.
Step 2: Adjust for Depth of Discharge (DoD)
LiFePO4 batteries often support 80-90% DoD, meaning you can use most of the battery’s capacity without damaging it. Use 80% as a conservative estimate.
Step 3: Apply Temperature Derating Factor
Standard batteries can lose 20-50% capacity at temperatures near freezing. For instance, at 32°F, a conventional lithium battery might only deliver 70-80% of rated capacity. In contrast, Wide Temp LiFePO4 batteries maintain close to 90-95% capacity at the same temperature.
To size for cold conditions, divide your required capacity by the expected capacity retention at the lowest operating temperature. For example, if you need 10 kWh and at -10°F your battery retains 80%, you would size for at least 12.5 kWh (10 kWh ÷ 0.8).
Example Calculation:
- Daily load: 10 kWh
- DoD: 80%
- Temperature derating at -20°F: 70% for standard battery, 90% for Wide Temp LiFePO4
- Standard battery sizing: 10 kWh ÷ 0.8 ÷ 0.7 ≈ 17.9 kWh
- Wide Temp battery sizing: 10 kWh ÷ 0.8 ÷ 0.9 ≈ 13.9 kWh
This example shows that Wide Temp batteries require smaller capacity buffers to compensate for cold temperature derating, saving on cost and space.

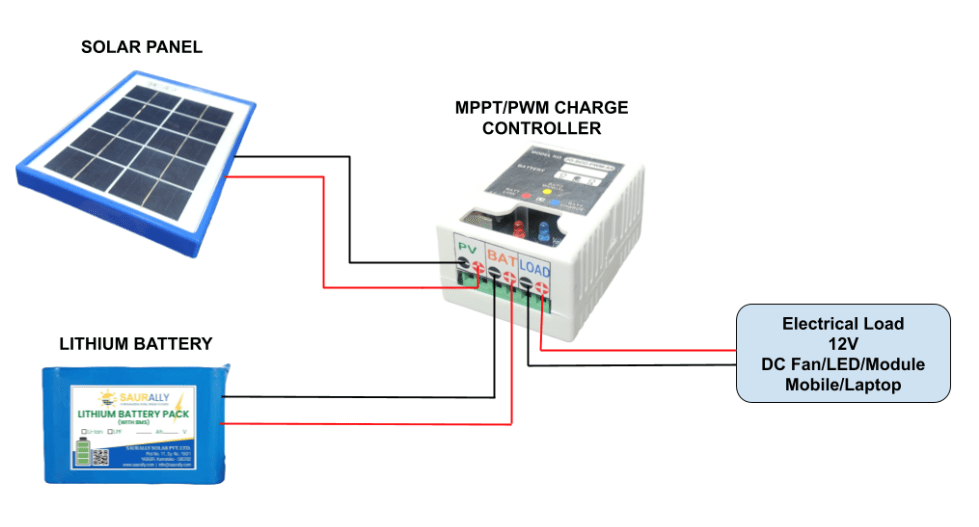

Compatibility with Solar Charge Controllers
Backup batteries must integrate seamlessly with solar charge controllers to ensure efficient charging and battery management. Intelligent Power’s Wide Temp LiFePO4 batteries are compatible with most MPPT (Maximum Power Point Tracking) and PWM (Pulse Width Modulation) charge controllers, but there are several considerations:
- Charging Voltage and Current Settings: LiFePO4 cells have different voltage requirements than lead-acid batteries. Ensure your charge controller supports LiFePO4 charging profiles to maximize battery life.
- Temperature Compensation: Some charge controllers include temperature sensors for battery charging adjustment. Wide Temp batteries designed with internal management systems can optimize charging without external sensors, simplifying system design.
- Battery Management System (BMS): Intelligent Power’s batteries include integrated BMS for overcharge, over-discharge, and temperature protection, ensuring safe operation across the Wide Temp range.
Working with experienced solar installers ensures your backup battery and charge controller are configured correctly for temperature and chemistry, avoiding underperformance or damage.
Installation Best Practices for Extreme Environments
Proper installation is crucial to preserving battery performance and longevity in wide temperature scenarios:
- Location Selection: If possible, install batteries in shaded, ventilated areas to minimize temperature extremes. However, Wide Temp batteries allow flexibility, including outdoor or unconditioned spaces, without requiring costly enclosures.
- Thermal Management: While Wide Temp LiFePO4 batteries tolerate extremes, installing thermal insulation or passive heating elements can enhance performance in the coldest months.
- Electrical Connections: Use corrosion-resistant terminals and ensure tight connections to prevent voltage drops, especially in cold environments where conductivity can be reduced.
- Monitoring Systems: Implement remote monitoring to track battery state of charge, temperature, and health, enabling proactive maintenance before issues arise.
For remote solar installations exposed to subzero temperatures or desert heat, Wide Temp batteries from Intelligent Power offer unmatched resilience, reducing maintenance visits and downtime.
Real-World Applications and Benefits
Consider a solar-powered telecom tower located in a northern region with winter temperatures regularly dropping below -20°F. A standard backup battery would require oversizing or a heated enclosure, increasing cost and complexity. By choosing Intelligent Power’s Wide Temp LiFePO4 battery, the operator can:
- Ensure reliable backup power throughout the year without additional heating elements.
- Reduce battery bank size due to minimal cold temperature derating.
- Extend battery replacement intervals thanks to high cycle life and thermal stability.
Similarly, solar microgrids in desert climates benefit from batteries that withstand daytime temperatures exceeding 130°F, maintaining safety and capacity where conventional solutions fail.
Conclusion
Selecting the right backup battery for solar system applications means looking beyond just capacity and cycle life. Temperature rating is a crucial specification that directly impacts battery performance, reliability, and total cost of ownership. Wide Temperature LiFePO4 batteries, like those from Intelligent Power, are engineered to operate flawlessly from -40°F to 140°F, delivering over 4,000 cycles and superior safety.
By incorporating temperature derating into your sizing calculations, ensuring controller compatibility, and following best installation practices, you can build a solar backup system that performs dependably in the harshest environments. Investing in Wide Temp battery technology safeguards your energy independence year-round, no matter the weather.
